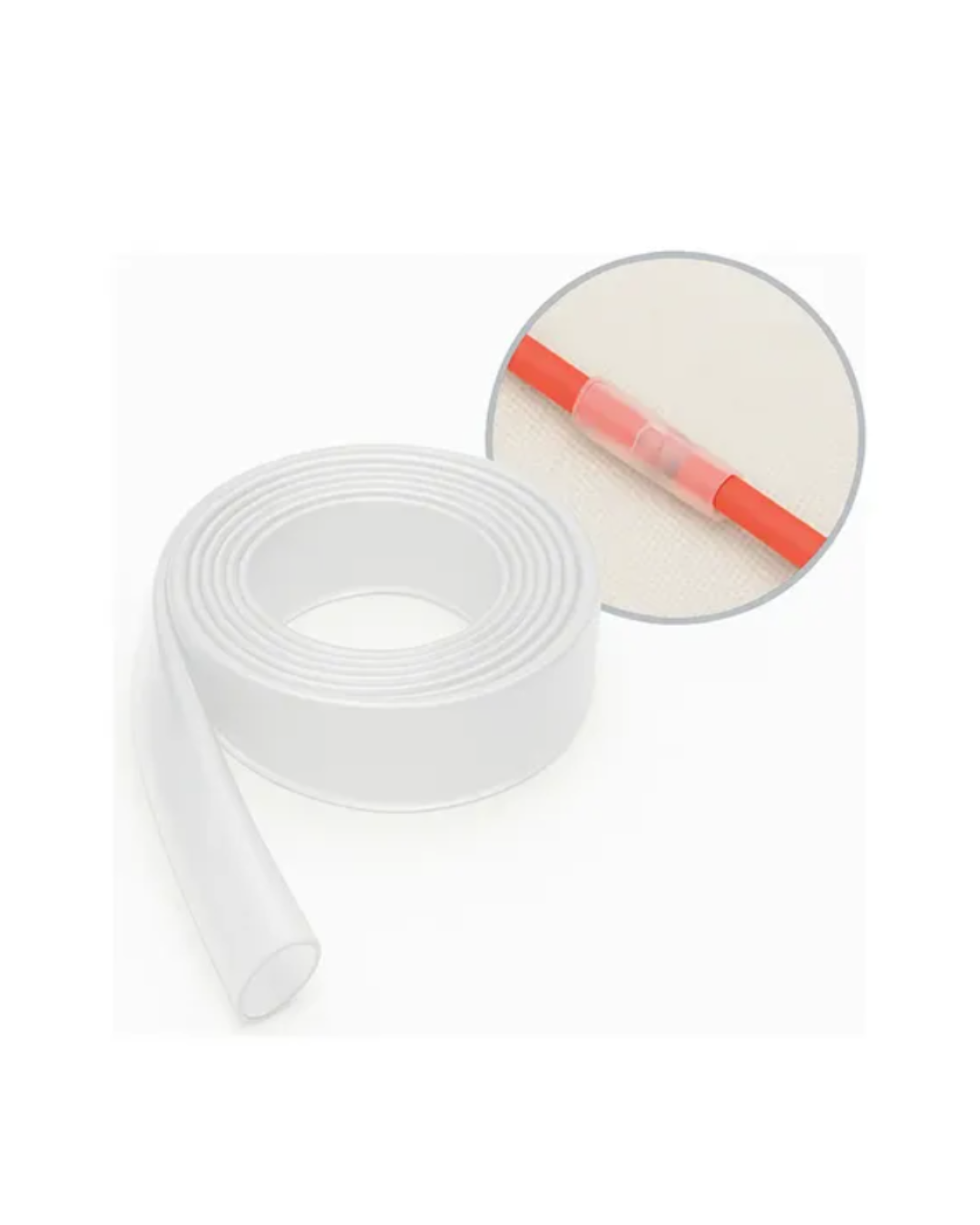

Transparent/Colorless Heat Shrink Tubing 16 mm | 2:1 Shrinkage Ratio | Polyolefin | Sold by the Meter

The 16 mm Clear/Colorless Heat Shrink Tubing is a heat shrink tube designed for the protection, finishing, and insulation of wires, cables, electrical connections, and electronic components , providing an organized finish and additional protection at the point of application.

Made from polyolefin , it has a single-wall, glue-free construction, making it suitable for applications requiring insulation and finishing without completely concealing the protected component thanks to its transparent/colorless characteristic.

With an initial internal diameter of 16 mm and a shrinkage ratio of 2:1 , the tube reduces its diameter to approximately 8 mm after complete shrinkage , adapting to the component on which it is installed.

The shrinkage process begins at approximately 80 °C , reaching full shrinkage at about 100 °C . After shrinkage, it has an approximate wall thickness of 0.70 mm .

Designed to operate in a wide temperature range, from -45 °C to 125 °C , the 16 mm Heat Shrink Tubing offers versatility for various electrical and electronic applications.

Its electrical specifications allow for use in applications up to 600 V, with peaks up to 1 kV , always respecting the technical conditions and requirements of the system in which it will be installed.

Sold by the meter , it allows you to purchase the quantity needed for each project, reducing waste and facilitating its use in professional installations, maintenance, and finishing.

Main Benefits

Made from polyolefin .
Transparent/colorless , allowing visualization of the protected component.
Initial inner diameter of 16 mm .
Diameter after contraction of approximately 8 mm .
Contraction ratio 2:1 .
Simple wall construction without glue .
Approximate thickness of 0.70 mm after shrinkage .
It helps protect and insulate wires, cables, and connections.
It provides a clean and organized finish.
Operating temperature from -45 °C to 125 °C .
Shrinkage begins at approximately 80°C .
Full contraction at approximately 100 °C .
Electrical applications up to 600 V, with peaks up to 1 kV .
Sold by the meter .

Applications

The 16 mm Clear/Colorless Heat Shrink Tubing is recommended for:

Wire protection
Cable protection
Electrical insulation
Electrical connections
Electronic connections
Cable finishing
Wiring organization
Amendment protection
Electrical maintenance
Electronic maintenance
Compatible electrical installations
Equipment assembly
Finishing and protection of components
Compatible industrial applications

Technical Specifications

Product: Heat Shrink Tubing

Initial Inner Diameter: 16 mm

Diameter After Contraction: Approximately 8 mm

Contraction Ratio: 2:1

Material: Polyolefin

Color: Transparent/Colorless

Construction: Single Wall

Internal Adhesive: No Glue

Thickness After Shrinkage: Approximately 0.70 mm

Operating Temperature: -45 °C to 125 °C

Start of Shrinkage: Approximately 80°C

Total Contraction: Approximately 100 °C

Voltage: Up to 600 V, with peaks up to 1 kV.

Commercialization: By the Meter

Application: Protection, finishing and insulation of wires, cables and electrical/electronic connections.

Usage Recommendations

Check the component diameter before installation to ensure compatibility with the 16 mm heat shrink tubing and 2:1 ratio .
Cut to the required length before installation.
Correctly position the tube over the wire, cable, connection, or component to be protected.
Apply heat evenly to ensure proper shrinkage.
Avoid concentrating excessive heat in a single spot.
Make sure the protected components are compatible with the temperature required for retraction.
Allow to cool completely before handling the assembly.
Respect the product's electrical and thermal specifications.
For electrical applications, ensure that the entire system is correctly sized and installed.

Conservation and Maintenance

To ensure greater performance and durability:

Store the product in a dry, covered, and protected place.
Keep away from excessive heat sources before use.
Avoid prolonged exposure to direct sunlight during storage.
Protect against contact with substances that may compromise the polyolefin.
Keep the material clean before installation.
Do not use sections that have cuts, punctures, or damage.
After installation, inspect the heat shrink tubing whenever maintenance is performed on the protected assembly.
Replace if it shows wear or damage that could compromise its function.

Why buy from FP Solução?

At FP Solução , you can find 16 mm Clear/Colorless Heat Shrink Tubing sold by the meter , allowing you to purchase the right quantity for your application, maintenance, or project.

In addition to equipment and solutions for industrial environments, FP Solução offers a large inventory and consultative support to assist professionals and companies in choosing the products best suited to their needs.
