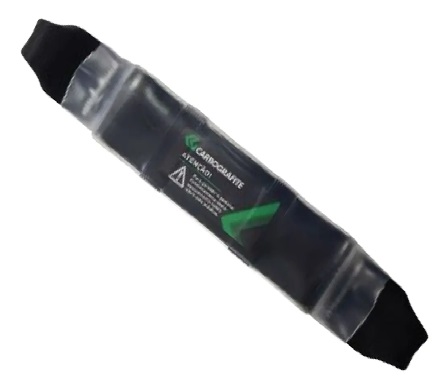

The Carbografite Energy Absorber for Rigid Lifelines is an indispensable component for fall protection systems, developed to work in conjunction with steel cable fall arresters in rigid lifelines.
Its main function is to absorb and dissipate the energy generated during a fall , significantly reducing the forces transmitted to the user, the structure, and the anchoring system. With a braking capacity limited to 6 kN , it helps minimize impacts during fall arrest, increasing the efficiency of the protection system.
Manufactured with high-strength polyester webbing 45 mm wide , the absorber has reinforced eyelets that offer excellent mechanical resistance and greater durability even in demanding industrial applications.
Compact when closed ( 280 mm ), the equipment expands in a controlled manner up to 1.40 meters when activated, progressively dissipating the energy of the fall and reducing the stress applied to the system.
Developed for use by 1 user , the absorber is suitable for applications in rigid lifelines , being widely used in civil construction, industrial maintenance, energy, oil and gas, mining, telecommunications, metal structures, offshore industry and other activities regulated by NR-35 .
With a shelf life of 10 years from the date of manufacture , when correctly stored and used according to the manufacturer's recommendations, it is a robust and reliable solution for permanent fall protection systems.
Developed for rigid lifeline systems with fall arresters for steel cable.
It absorbs and dissipates the energy generated during fall arrest.
Maximum braking capacity of 6 kN .
Made from high-strength polyester webbing , 45 mm wide.
Reinforced eyelets for greater structural strength.
Controlled expansion system that progressively reduces impacts.
Compact length of 280 mm when closed.
Expansion of up to 1.40 m after activation.
Developed for use by 1 user .
High strength and excellent durability for industrial applications.
The Carbografite Energy Absorber is indicated for:
Rigid lifeline
Fall arrest device for steel cable
Fall protection systems
Working at height (NR-35)
Civil construction
Industrial maintenance
Industrial inspection
Electrical energy
Telecommunications
Oil and gas
Offshore
Mining
Metal structures
Industries in general
Product: Energy Absorber for Rigid Lifeline
Brand: Carbografite
Application: Rigid lifeline with fall arrest device for steel cable.
Number of Users: 1 user
Maximum Braking Capacity: 6 kN
Material: Polyester tape
Tape Width: 45 mm
Length (Closed): 280 mm
Length (After Activation): Up to 1.40 m
Eyelets: Reinforced with a protective fold.
Function: Absorption and dissipation of energy generated during arrest of a fall.
Shelf life: 10 years after the manufacturing date.
Useful life: Varies depending on frequency of use, inspections, storage, and working conditions.
For use exclusively in rigid lifeline systems with fall arresters for steel cable.
Before each use, inspect the tape, eyelets, and the entire absorption system.
After any fall arrest, the shock absorber must be removed from service and replaced according to the manufacturer's instructions.
The installation must follow the lifeline design and current technical standards.
Always use in conjunction with other required PPE for working at heights.
To ensure a longer lifespan for the equipment:
Clean using a soft cloth, warm water, and mild soap.
Do not use solvents or harsh chemicals.
Store in a dry, clean, well-ventilated place, protected from direct sunlight.
Avoid contact with excessive moisture, oils, chemicals, and sharp surfaces.
Perform periodic inspections in accordance with company and manufacturer safety procedures.
The Carbografite Rigid Lifeline Energy Absorber was developed to provide maximum efficiency in energy dissipation , helping to reduce the loads transmitted during a fall and increasing the reliability of fall protection systems.
Its robust construction, high-strength polyester webbing, reinforced eyelets, and 6 kN braking capacity make this equipment an excellent choice for permanent lifeline projects used in industrial environments.
At FP Solução , you'll find certified equipment, ready for delivery, specialized technical support, and consultative service to develop complete fall protection solutions.
Carbografite Energy Absorber for Rigid Lifeline with steel cable fall arrestor. 6 kN braking capacity, polyester webbing, and a 10-year lifespan. Ideal for NR-35 compliance.
